    I am ahead of my self here as I have no plants to attach yet but was thinking of what to do.

    The fence panels are quite flimsy and slot in between concrete posts. if i want to grow clematis for example and want them to grow up fence i was thinking the best way to do it. If i put vine eyes into fence panel i reckon the thing would just disintegrate. so i was thinking would it work if i put a vine eye into one godfather and then the next one 6 foot away and use tension wire. or failing this i was thinking of ramming a wooden stake in next to each panel and have a sort of colonade? what do you think peeps?

  2. Ian Taylor

    Ian Taylor Total Gardener

    Joined:
    Nov 1, 2013
    Messages:
    2,228
    Gender:
    Male
    Occupation:
    Maintenance Manager, Oddfellows on the Park.
    Location:
    Cheadle Hulme
    Ratings:
    +2,751
    That's a job I have to do as well, I got some 3" vine eyes over Christmas to fit in the holiday,
    It is ok to drill in to concrete fence post, just rawlplug the hole and screw in the vine eye

  3. flower-power

    flower-power Gardener

    Joined:
    Feb 2, 2014
    Messages:
    60
    Gender:
    Female
    Occupation:
    local authority
    Location:
    Redditch
    Ratings:
    +35
    oh great i will put that on my never ending list then!!!

  4. Ian Taylor

    Ian Taylor Total Gardener

    Joined:
    Nov 1, 2013
    Messages:
    2,228
    Gender:
    Male
    Occupation:
    Maintenance Manager, Oddfellows on the Park.
    Location:
    Cheadle Hulme
    Ratings:
    +2,751
    I'm just waiting for it to stop raining then I can fit my vine eyes

  5. flower-power

    flower-power Gardener

    Joined:
    Feb 2, 2014
    Messages:
    60
    Gender:
    Female
    Occupation:
    local authority
    Location:
    Redditch
    Ratings:
    +35
    that'll be about June then. LOL

  6. HarryS

    HarryS Eternally Optimistic Gardener

    Joined:
    Aug 28, 2010
    Messages:
    8,906
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Wigan
    Ratings:
    +16,248
    I, ll photo mine later then you can see how I attached vine eyes :blue thumb:

  7. HarryS

    HarryS Eternally Optimistic Gardener

    Joined:
    Aug 28, 2010
    Messages:
    8,906
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Wigan
    Ratings:
    +16,248
    Hi Flower Power and Ian

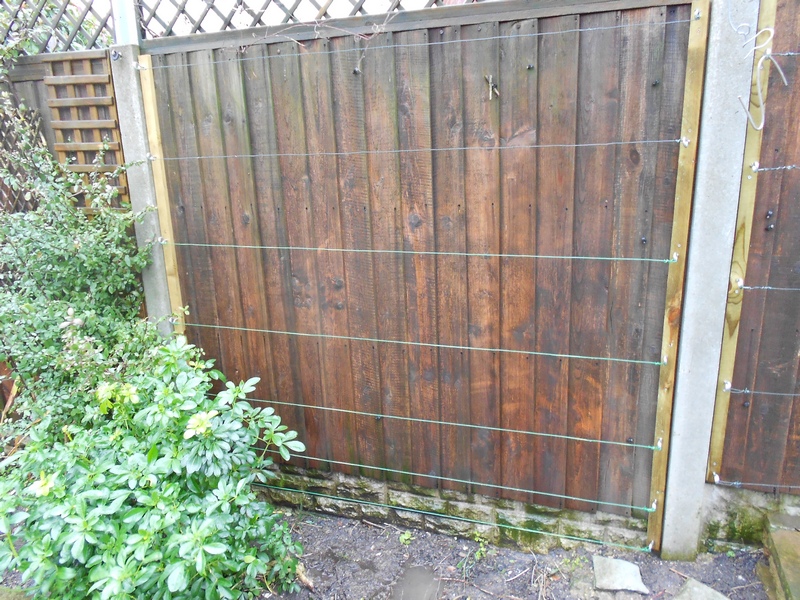

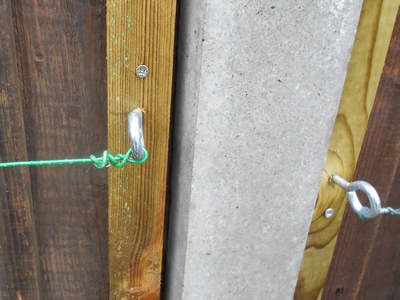

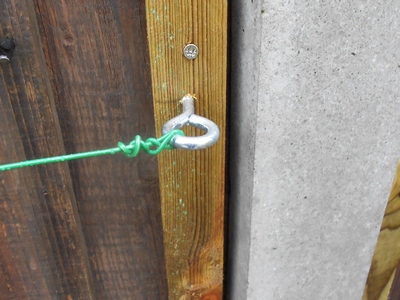

    I screwed 20mm batons to each side of the fence . I fitted 65mm zinc plated vine eyes every 30cm (45mm size may have been better ). You must use exactly the right length of woodscrew . As my fence boards are 10mm thick , then I needed 30mm screws so they would not pop through on the other side. I stretched as tight as possible by hand 2mm plastic coated garden wire , with the vine eyes at " 3 o clock " , when I turned the eyes to "6 o clock this tensioned the wire - see photos.
    http://www.screwfix.com/p/screw-eye-10ga-x-45mm-pack-of-10/16205
    DSCN1125.JPG DSCN1124_cr.jpg DSCN1123_cr.jpg

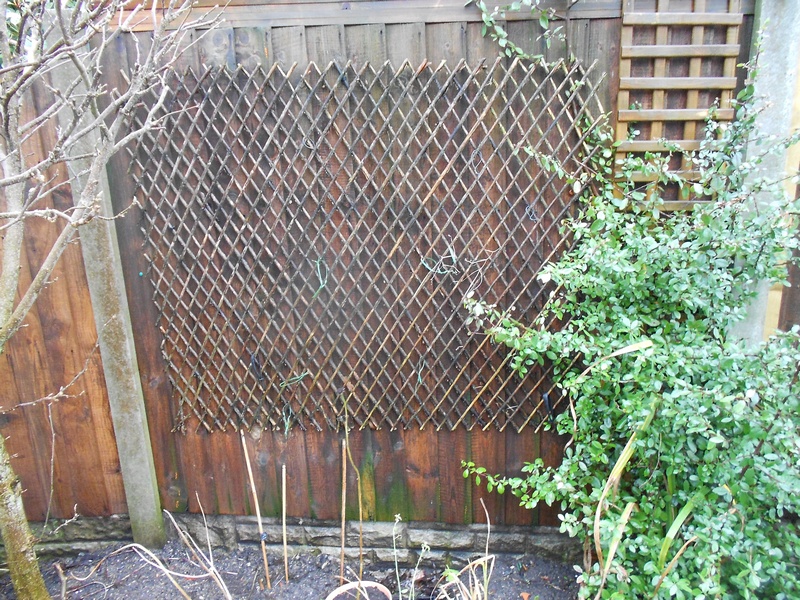

    Another method is willow concertina panelling , attached with cable clips . DSCN1126.JPG

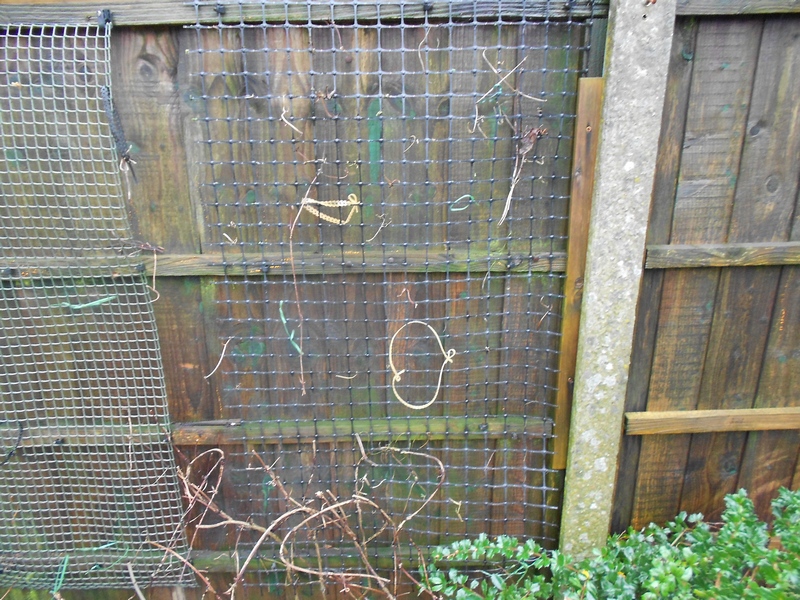

    Plastic mesh , again attached with cable clips . Its best to screw the cable clips in as hammering nails into a wobbly fence is hard work ! DSCN1127.JPG

    • Like Like x 3
    • Informative Informative x 3
    • Useful Useful x 1
    • DIY-Dave

      DIY-Dave Gardener

      Joined:
      Jan 9, 2014
      Messages:
      733
      Gender:
      Male
      Location:
      Johannesburg, South Africa
      Ratings:
      +772
      @HarryS

      Nice idea with the wooden batons on either side, certainly beats drilling into the concrete posts as they probably have re-bar in them and hitting one with the drill is no fun.

      • Agree Agree x 1
      • Ian Taylor

        Ian Taylor Total Gardener

        Joined:
        Nov 1, 2013
        Messages:
        2,228
        Gender:
        Male
        Occupation:
        Maintenance Manager, Oddfellows on the Park.
        Location:
        Cheadle Hulme
        Ratings:
        +2,751
        Only problem I can see is if you have to change your fence panel, thats why I screwed mine in to the concrete.
        A red rawlplug is only 30mm long so you have no chance of hitting a rebar as a average fence posts are 100mm, and the rebars are in the 4 corners

        • Like Like x 1
        • Agree Agree x 1
        • DIY-Dave

          DIY-Dave Gardener

          Joined:
          Jan 9, 2014
          Messages:
          733
          Gender:
          Male
          Location:
          Johannesburg, South Africa
          Ratings:
          +772
          @Ian Taylor

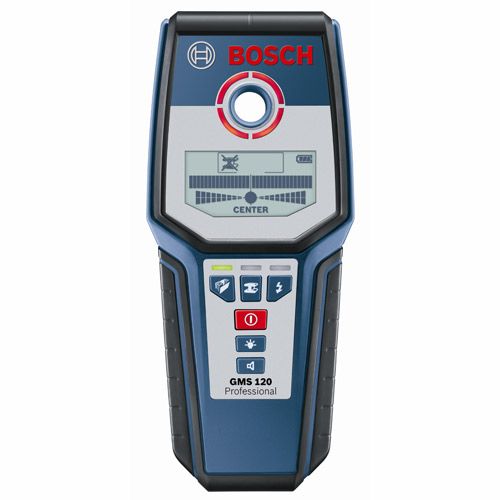

          True, but since getting one of these, I have become totally reliant on it and don't drill a hole without checking first.
          It detects, rebar, wiring and metal pipes, it's a fantastic contraption and probably worth it even for the occasional diy.
          Most power tool manufacturers seem to have several models of these.

        • HarryS

          HarryS Eternally Optimistic Gardener

          Joined:
          Aug 28, 2010
          Messages:
          8,906
          Gender:
          Male
          Occupation:
          Retired
          Location:
          Wigan
          Ratings:
          +16,248
          I have a Black and Decker one which is also a laser level . I use it to detect if there are any cables in the area. Also use is to find joists and studs , I dont know how it detects that wood is there :scratch:

        • DIY-Dave

          DIY-Dave Gardener

          Joined:
          Jan 9, 2014
          Messages:
          733
          Gender:
          Male
          Location:
          Johannesburg, South Africa
          Ratings:
          +772
          It's a mystery to me too.

        • DIY-Dave

          DIY-Dave Gardener

          Joined:
          Jan 9, 2014
          Messages:
          733
          Gender:
          Male
          Location:
          Johannesburg, South Africa
          Ratings:
          +772
          • Informative Informative x 1
          • flower-power

            flower-power Gardener

            Joined:
            Feb 2, 2014
            Messages:
            60
            Gender:
            Female
            Occupation:
            local authority
            Location:
            Redditch
            Ratings:
            +35
            thanks for the info. erm.......whats rebar

          • DIY-Dave

            DIY-Dave Gardener

            Joined:
            Jan 9, 2014
            Messages:
            733
            Gender:
            Male
            Location:
            Johannesburg, South Africa
            Ratings:
            +772
            rebar = reinforcing bar, metal bars embedded in the concrete to give it more structural strength.

            Metal bars or a mesh of them are first made up, placed in a mold (if applicable) then the concrete is poured over the metal bars and allowed to set.
            This gives added strength the the final product.

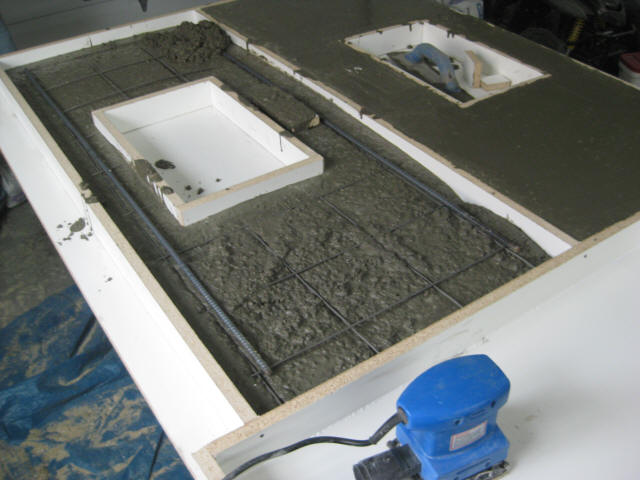

            Below is an example of a concrete counter with the rectangle in the middle being the "void" for the basin.
            If rebar was not added, the counter by itself would not have much strength and land up cracking and falling apart.


            • Informative Informative x 1
