DIY plumbing

Discussion in 'Off-Topic Discussion' started by Clueless 1 v2, Oct 8, 2022.

  1. Clueless 1 v2

    Clueless 1 v2 Total Gardener

    Joined:
    Jun 26, 2022
    Messages:
    2,038
    Gender:
    Male
    Ratings:
    +2,769
    Seeing as our central heating has never worked in the entire time we've been here, I want it gone. At the very least I want the radiators out so we can redecorate without having to do it again after I've had a plumber round.

    I can watch YouTube videos to see how to do it but the question is, how hard is it really? YouTube videos usually feature a skilled plumber demonstrating in nice perfect conditions. I'm not a plumber, and I doubt I'll find nice brand new valves and pipes and things.

    Oh I don't need to worry about gas. We had the gas supply cut off and capped. I only need to worry about flooding the house or cutting off our water supply.

    • Creative Creative x 1
    • Jocko

      Jocko Guided by my better half.

      Joined:
      Jan 2, 2022
      Messages:
      2,417
      Gender:
      Male
      Occupation:
      Retired engineer. Now Vice CEO of the garden.
      Location:
      Danderhall on southern edge of Edinburgh. Zone 8a.
      Ratings:
      +6,782
      Removing radiators to decorate is no problem. Just turn down the thermostatic valve and shut off the bottom valve. Stick a shallow baking tray under the bottom fitting, crack open the bleed valve then slacken the bottom pipe fitting taking care not to bend the pipe (two spanners required). Once drained remove the top fitting (slacken the fittings between the valves and the radiator. NOT between the valves and the supply pipes). I had to remove five radiators last year that had been installed for years. Then refit and bleed the system, topping up the boiler as I went along.

      • Informative Informative x 1
      • pete

        pete Growing a bit of this and a bit of that....

        Joined:
        Jan 9, 2005
        Messages:
        51,027
        Gender:
        Male
        Occupation:
        Retired
        Location:
        Mid Kent
        Ratings:
        +93,703
        If your getting rid of the whole system might be worth just trying to drain it all down.
        There will still be some water left but you can get rid of that as you remove each radiator.

        Presume you just want to cut off the pipes as you go as well.

      • Clueless 1 v2

        Clueless 1 v2 Total Gardener

        Joined:
        Jun 26, 2022
        Messages:
        2,038
        Gender:
        Male
        Ratings:
        +2,769
        I would like to drain it down.

        Ideally, I'd like to drain it down, then get rid of any pipes that are visible, ie the ones that supply the radiators.

        At some point I will have to get a plumber because there's an ancient back boiler to get rid of. I presume I can't do that myself? Or is it that once drained down, the boiler will have no water supply?

        Does draining the central heating system require me to turn the water off to the whole house, or would I expect to find a separate valve somewhere?

      • pete

        pete Growing a bit of this and a bit of that....

        Joined:
        Jan 9, 2005
        Messages:
        51,027
        Gender:
        Male
        Occupation:
        Retired
        Location:
        Mid Kent
        Ratings:
        +93,703
        Sorry dont know much about back boiler systems but I would think there must be a mains feed to the system somewhere, you just need to turn the house supply off then cut through the pipe and cap it off.

        I know it sounds easy but the capping off is, you just need know what pipes do what and go where.
        Once that is done you can drain the system down, letting the air in via the bleed valves on rads and probably a few others elsewhere like on the boiler.

      • Palustris

        Palustris Total Gardener

        Joined:
        Oct 23, 2005
        Messages:
        3,670
        Gender:
        Male
        Occupation:
        Retired
        Location:
        West Midlands
        Ratings:
        +3,089
        Somewhere in your property there may be a feeder tank for the system, usually in the loft. There should be an isolation valve on it so that the system can be drained.

        • Like Like x 1
        • Clueless 1 v2

          Clueless 1 v2 Total Gardener

          Joined:
          Jun 26, 2022
          Messages:
          2,038
          Gender:
          Male
          Ratings:
          +2,769
          I might just remove the radiators for now the way @Jocko said. I think I'll entrust the big job to a plumber. Sounds like too much risk of me either flooding the house or destroying the water supply or both.

          • Informative Informative x 1
          • ricky101

            ricky101 Total Gardener

            Joined:
            Jun 15, 2016
            Messages:
            3,418
            Gender:
            Male
            Location:
            Sheffield
            Ratings:
            +4,333
            Do you want to refit the original radiators ?

            If they are very old ? it might be worth fitting new ones as the old ones are bound to be corroded and sludged up to some degree.

          • pete

            pete Growing a bit of this and a bit of that....

            Joined:
            Jan 9, 2005
            Messages:
            51,027
            Gender:
            Male
            Occupation:
            Retired
            Location:
            Mid Kent
            Ratings:
            +93,703
            Often, I find, valves drip and dont turn things off completely.

            • Agree Agree x 1
            • Clueless 1 v2

              Clueless 1 v2 Total Gardener

              Joined:
              Jun 26, 2022
              Messages:
              2,038
              Gender:
              Male
              Ratings:
              +2,769
              No, the whole central heating system is going, never to be replaced.

            • ricky101

              ricky101 Total Gardener

              Joined:
              Jun 15, 2016
              Messages:
              3,418
              Gender:
              Male
              Location:
              Sheffield
              Ratings:
              +4,333
              As said, if you turn off the cold feed to or from the central heating header tank, usually in the loft, you can drain each radiator in turn, but it would help if you could find the Drain point and open its tap to take out most of the water from the whole system first.

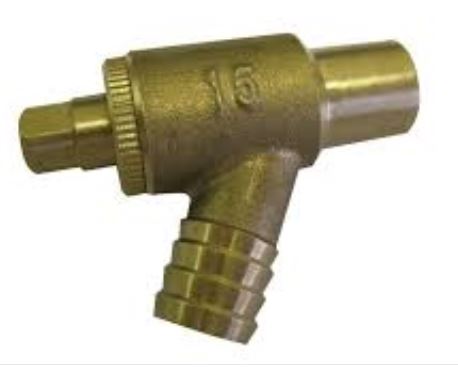

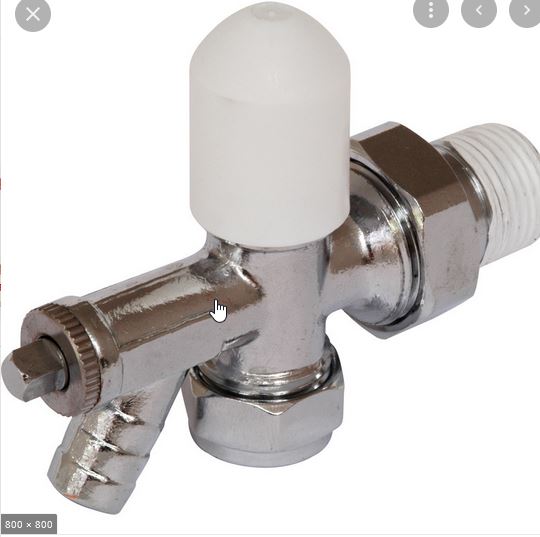

              Often something looking like this on its own of as part of a radiator valve somewhere on the ground floor or lower.

              001442.jpg 001443.jpg

              • Like Like x 1
              • Clueless 1 v2

                Clueless 1 v2 Total Gardener

                Joined:
                Jun 26, 2022
                Messages:
                2,038
                Gender:
                Male
                Ratings:
                +2,769
                I know where the drain tap is. I've found it on a radiator in the passage, conveniently near the front door. But I think this is beyond my confidence level so I'll just remove the radiators the way Jocko said, and at a later date, get a plumber to do the complicated bits.

              • Jocko

                Jocko Guided by my better half.

                Joined:
                Jan 2, 2022
                Messages:
                2,417
                Gender:
                Male
                Occupation:
                Retired engineer. Now Vice CEO of the garden.
                Location:
                Danderhall on southern edge of Edinburgh. Zone 8a.
                Ratings:
                +6,782
                You don't want to use my method if you are going to leave the radiators off for a protracted period. if it got really cold the thermostatic valves could open and flood the house. Shut the supply to the header tank then drain down the system from the drain valve then disconnect as I suggested.
                Removing the back boiler is a bar steward of a job. It took our builders two days of chiselling and hammering to get ours out and what a mess it made. I think if we knew what was involved we would have left the fire in place! If the builder knew how bad it was going to be he would have quoted considerably more!!

              • Clueless 1 v2

                Clueless 1 v2 Total Gardener

                Joined:
                Jun 26, 2022
                Messages:
                2,038
                Gender:
                Male
                Ratings:
                +2,769
                That's useful to know.

                Re the valves opening and flooding the house, i can't see how that could happen in my house. The central heating pump has been switched off for about 10 years, and there are no thermostatic valves. It is literally about the most ancient central heating system ever. I think if some archeologists stopped by for a cuppa, there'd be tape round my house for weeks and the whole of history would be rewritten.

                As a reassurance, I've seen that Screwfix sell special plug bolt things purpose made to seal off radiator pipes. They're only a couple of quid or so. I'd get some of them.

                For removing the back boiler, if it's going to be a nightmare to extract, I'd just have the plumber leave it there, as long as the necessary pipework is done to take it out of the equation. It is set far enough back in the fireplace that I'll be able to board over it while still staying flush to the wall.

                EDIT. I've just had a look and I'm sadly wrong. The back boiler is quite far back, but it does protrude a couple of inches, which is annoying, so unless I keep the fireplace as a showpiece, which I didn't want to do, it does have to come out.

                Last edited: Oct 8, 2022
              • Jocko

                Jocko Guided by my better half.

                Joined:
                Jan 2, 2022
                Messages:
                2,417
                Gender:
                Male
                Occupation:
                Retired engineer. Now Vice CEO of the garden.
                Location:
                Danderhall on southern edge of Edinburgh. Zone 8a.
                Ratings:
                +6,782
                That was exactly the same as mine.

                • Informative Informative x 1
