Gate dropped

Discussion in 'Garden Projects and DIY' started by Snowbaby, Aug 11, 2018.

  1. Snowbaby

    Snowbaby Gardener

    Joined:
    May 9, 2010
    Messages:
    466
    Occupation:
    Childminder
    Location:
    Scotland
    Ratings:
    +110
    Hi guys,

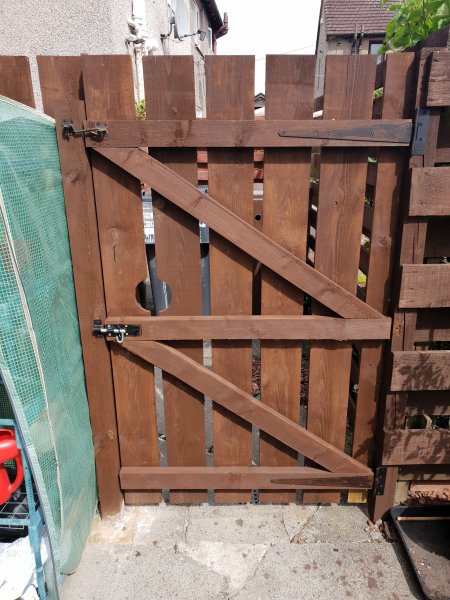

    Can any of you give advice on how to do a quick easy fix to this gate please? When installed a few weeks ago it closed and locked perfectly, it rained and now it's dropped meaning the snib on the gate is lower than the latch it locks into on the post.
    Thank you


    • Like Like x 1
      Last edited by a moderator: Aug 11, 2018
    • pete

      pete Growing a bit of this and a bit of that....

      Joined:
      Jan 9, 2005
      Messages:
      25,439
      Gender:
      Male
      Occupation:
      joinery
      Location:
      Mid Kent
      Ratings:
      +22,815
      Well that kind of thing happens with timer outside, has the post moved?
      I assume you are referring to the bolt not lining up properly.

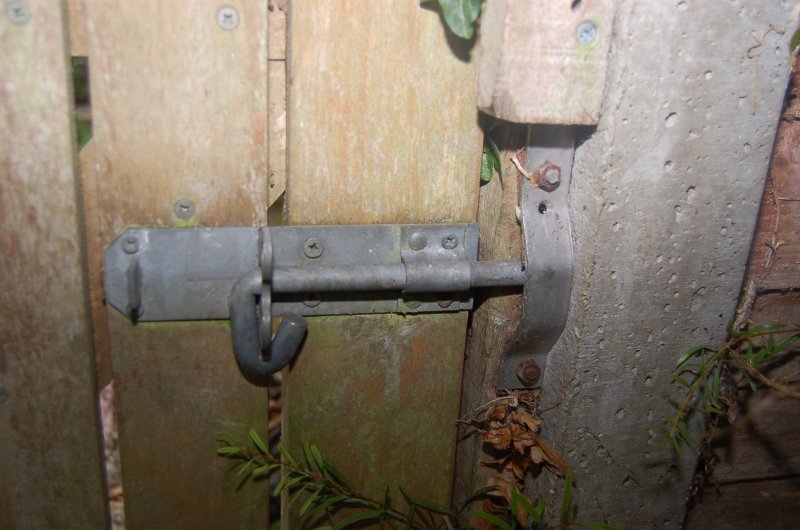

      I'd be inclined to get a piece of bent metal and make something like this, that allows up and down movement but still holds the gate closed.

      • Like Like x 8
      • Agree Agree x 1
      • Useful Useful x 1
      • Scrungee

        Scrungee Well known for it

        Joined:
        Dec 5, 2010
        Messages:
        13,728
        Location:
        Central England on heavy clay soil
        Ratings:
        +22,096
        I've done that with more than one gate where one side is a building (stable) and the other a post with a small foundation in clay soil (prone to heave).

        But being a new gate with this problem occuring after heavy rain, another cause could be a poorly constructed gate getting soaked and 'sagging', in which case I'd check the diagonals were equal/corners square (plus the gap between gate and post is constant), and if not hoick it up on the latch side and stabilize it with lots of extra screws to keep it square.

        • Like Like x 3
        • Agree Agree x 1
          Last edited: Aug 11, 2018
        • WeeTam

          WeeTam Total Gardener

          Joined:
          Mar 9, 2015
          Messages:
          1,680
          Gender:
          Male
          Ratings:
          +3,394
          Or just move the snib. I did this when my neighbour dropped a tree on my rear gate.

          • Like Like x 3
          • Snowbaby

            Snowbaby Gardener

            Joined:
            May 9, 2010
            Messages:
            466
            Occupation:
            Childminder
            Location:
            Scotland
            Ratings:
            +110
            This is the 3rd gate it has happened to (all 3 built and hung by the same tradesman).
            I thought about moving the snib but in drier weather it's slightly easier to snib it locked, so there seems to be regular movement.
            I like the idea of a bigger piece that it locks into to accommodate this. I'll have a look into that.
            Thanks everyone

            • Friendly Friendly x 1
            • Gail_68

              Gail_68 Guest

              Ratings:
              +0
              I suggest moving on to another tradesman if things like this keep occurring :smile:

            • Verdun

              Verdun Passionate gardener

              Joined:
              Oct 16, 2012
              Messages:
              4,532
              Gender:
              Male
              Location:
              West Cornwall
              Ratings:
              +9,821
              It is not necessarily the fault of the fitter here. Wood is affected by the weather and if it is not top quality and well seasoned, will move.

              I have done exactly as Pete suggested, many times, and made my own to accommodate future movements. It is the solution.

              Snowbaby, dont blame the tradesman but ask him to fit it if you feel you cannot :)

              • Like Like x 2
              • Agree Agree x 1
              • Friendly Friendly x 1
              • HarryS

                HarryS Eternally Optimistic Gardener

                Joined:
                Aug 28, 2010
                Messages:
                7,744
                Gender:
                Male
                Occupation:
                Retired
                Location:
                Wigan
                Ratings:
                +13,257
                Nothing wrong with the tradesman , things do settle in and loose alignment . Realigning the snib or a bigger snib is a great solution. 3 gates fitted ? How many gates does one need :snorky:

                • Like Like x 1
                • Friendly Friendly x 1
                • Mike Allen

                  Mike Allen Gardener

                  Joined:
                  Jan 4, 2014
                  Messages:
                  455
                  Gender:
                  Male
                  Ratings:
                  +822
                  For a start, it looks like the 'T' hinges are odd sizes, the bottom one looking to be the smaller. The timber looks to be fairly heavy so I personaly would have use three hinges. Judging by the gap top to bottom of the closing edge, this suggests to me that the bottom hinge is the problem. Just an observation.

                  • Like Like x 1
                  • pete

                    pete Growing a bit of this and a bit of that....

                    Joined:
                    Jan 9, 2005
                    Messages:
                    25,439
                    Gender:
                    Male
                    Occupation:
                    joinery
                    Location:
                    Mid Kent
                    Ratings:
                    +22,815
                    I kind of think both hinges are the same size.
                    It looks to me like it is the angle the picture is taken that is making the bottom one look smaller.:smile:

                    • Agree Agree x 3
                    • Like Like x 1
                    • clanless

                      clanless Super Gardener

                      Joined:
                      Jan 20, 2013
                      Messages:
                      903
                      Gender:
                      Male
                      Occupation:
                      Gentleman of leisure.
                      Location:
                      North Wales
                      Ratings:
                      +1,925

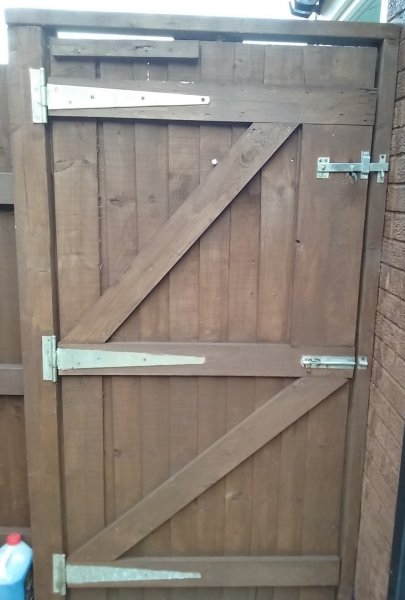

                      I've recently fitted a diy gate - painted to minimise the wood shrinking/expanding in dry/wet weather.

                      Easy fix - move the latch.

                      Longer term fix - replace those hinges with some which are heavy duty - my gate is a third of the size of yours and it's really heavy - stronger hinges with more robust screws will help to stop the gate from dropping under it's own weight.

                      The post that the hinges are screwed to doesn't look too robust to be honest - perhaps this is why the 'light duty' hinges were used.

                      It's quite easy to install a fence post - I've just installed picket fencing to the front garden - no previous experience - but found it quite easy to do.

                      • Agree Agree x 1
                      • Gail_68

                        Gail_68 Guest

                        Ratings:
                        +0
                        clanless the thing is mate have you also fitted a spy hole ;)

                        • Like Like x 1
                        • Mike Allen

                          Mike Allen Gardener

                          Joined:
                          Jan 4, 2014
                          Messages:
                          455
                          Gender:
                          Male
                          Ratings:
                          +822
                          No problem Pete. As you say, the angle of the picture

                          • Friendly Friendly x 2
                          • clanless

                            clanless Super Gardener

                            Joined:
                            Jan 20, 2013
                            Messages:
                            903
                            Gender:
                            Male
                            Occupation:
                            Gentleman of leisure.
                            Location:
                            North Wales
                            Ratings:
                            +1,925
                            Top tip - I find that purchasing knotty wood and then popping out the centre of the knots - is a quick and cheap way of forming a natural spy hole.

                            The last time I looked through a spy hole - I saw an eye ball on the other side - very disturbing :doh:;)

                            • Funny Funny x 4
                            • Gail_68

                              Gail_68 Guest

                              Ratings:
                              +0
                              Hubbies doing mate ;)...in case we're down the back garden :dunno: best thing about it I can't see through them :snorky:

                              20180814_185958 (2).jpg
