Hayter Harrier 48, kill cable confusion.

Discussion in 'General Gardening Discussion' started by Martin247, Mar 16, 2025 at 10:25 AM.

  1. Martin247

    Martin247 Apprentice Gardener

    Joined:
    Saturday
    Messages:
    4
    Ratings:
    +2
    Hi all, new here so wanted to say hello initially and to share and ask for help with my mower problem.

    I have recently purchased a used Harrier 48, and on closer inspection, found the cable is missing for the (I think it’s called) engine kill switch. It’s the handle that need to be closed in order for the engine to run, spring loaded so if you I:guess trip and let go the mower cuts out.

    My confusion is I am completely unable to see where the cable should terminate at the engine.

    I'm wondering if anyone can assist and guide me. Maybe with a photo or expiation.

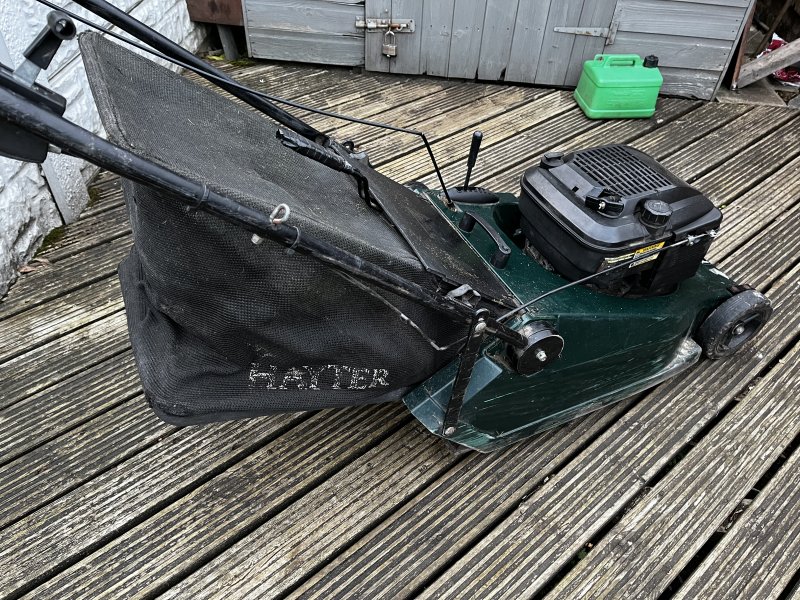

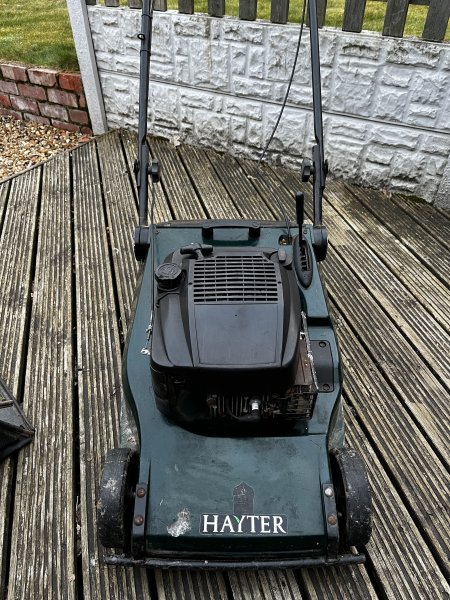

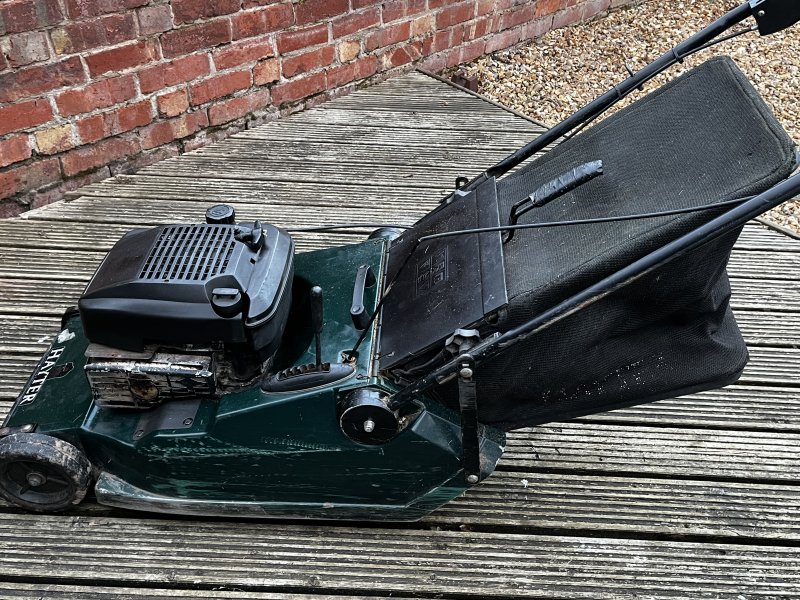

    I cant seem to locate any plate on the mower to identify the actual model, sadly so added a couple of images in case anyone may know?

    any assistance from the wider group is appreciated, I’m assuming this kill switch is a legal requirement to have too?

    Cheers
    Martin


    Attached Files:

  2. Logan

    Logan Total Gardener

    Joined:
    May 27, 2017
    Messages:
    16,124
    Gender:
    Female
    Occupation:
    housewife
    Location:
    redditch Worcester
    Ratings:
    +51,378
    Hi and welcome @Martin247
    I'd get in touch with whoever you bought from.

    • Like Like x 1
    • Martin247

      Martin247 Apprentice Gardener

      Joined:
      Saturday
      Messages:
      4
      Ratings:
      +2
      Oh. Very helpful,

      • Creative Creative x 1
      • infradig

        infradig Total Gardener

        Joined:
        Apr 28, 2022
        Messages:
        1,263
        Gender:
        Male
        Occupation:
        Freelance self preservationist
        Location:
        Solent
        Ratings:
        +1,539
        Likely to link to engine to 'open' connection to ignition when released.ie to start engine it must be 'squeezed' closed at handlebar.Remove plastic engine cover to find where it hooks in, probably on governor on carburettor.Likely to be spring loaded.
        Does engine start ?

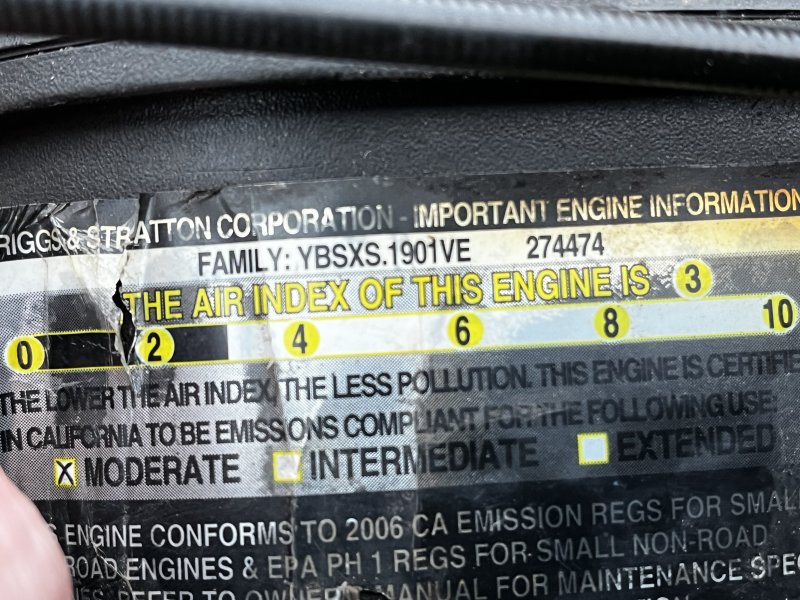

        Produced after 2006 probably....
        Manual Finder | Hayter
        Find Manual & Parts List | Briggs & Stratton

        • Agree Agree x 1
        • Tidemark

          Tidemark Super Gardener

          Joined:
          Jun 5, 2024
          Messages:
          921
          Occupation:
          Long retired
          Location:
          Near Buxton
          Ratings:
          +2,413
        • Pete8

          Pete8 Super Gardener

          Joined:
          Aug 29, 2017
          Messages:
          625
          Gender:
          Male
          Occupation:
          Retired
          Location:
          Billericay, Essex
          Ratings:
          +1,633

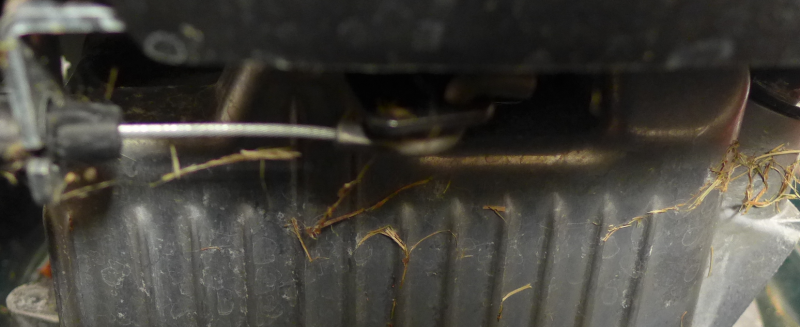

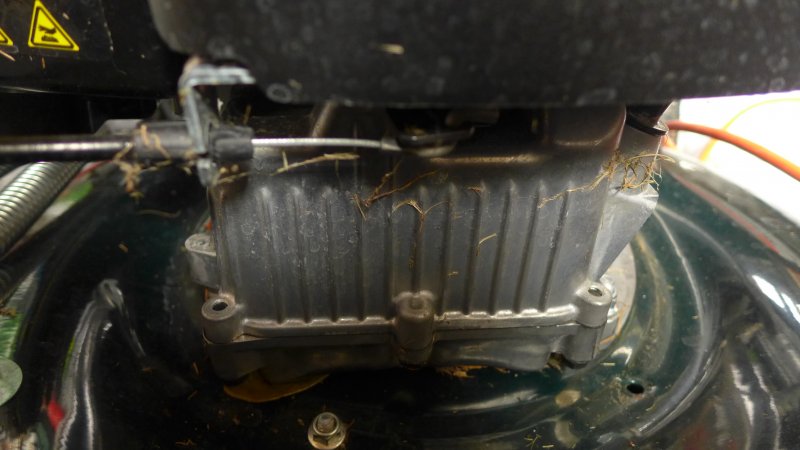

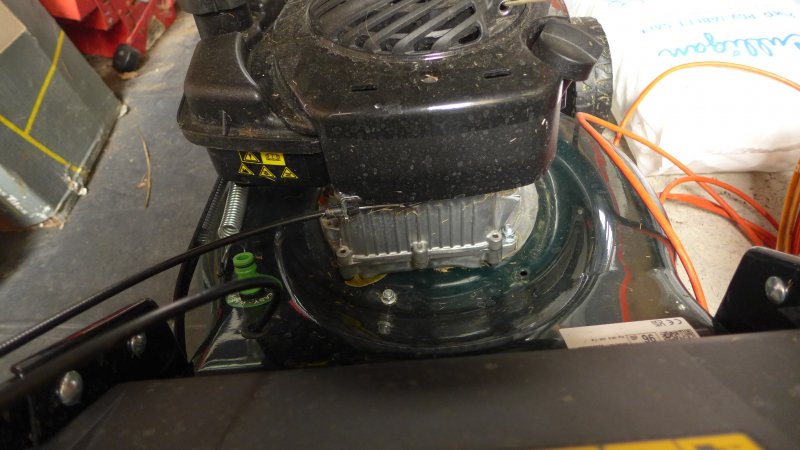

          I have a Hayter Osprey, and this is where the 'kill cable' goes on mine.
          I think yours has the same Briggs & Stratton engine




          • Informative Informative x 1
          • Martin247

            Martin247 Apprentice Gardener

            Joined:
            Saturday
            Messages:
            4
            Ratings:
            +2

          • Martin247

            Martin247 Apprentice Gardener

            Joined:
            Saturday
            Messages:
            4
            Ratings:
            +2
            Cheers Pete again helpful and thanks for the images, yeah I have an old Hawk I think and it has something like this too but unable to identify anything on the 48, very odd indeed.

            I’ll take a closer look in the week and see if I am being an idiot …..

            • Like Like x 1
            • Logan

              Logan Total Gardener

              Joined:
              May 27, 2017
              Messages:
              16,124
              Gender:
              Female
              Occupation:
              housewife
              Location:
              redditch Worcester
              Ratings:
              +51,378
              You're welcome :) :biggrin:
              I don't know anything about lawnmowers, but it's a good option.

              • Like Like x 1
              • shiney

                shiney President, Grumpy Old Men's Club Staff Member

                Joined:
                Jul 3, 2006
                Messages:
                64,887
                Gender:
                Male
                Occupation:
                Retired - Last Century!!!
                Location:
                Herts/Essex border. Zone 8b
                Ratings:
                +127,092
                I'll try and get to my mower to have a look (Harrier 56) but think mine is too new to be of help.

                On my previous one (late 90's) I don't remember there being a kill switch. I was able to leave the engine running whilst emptying the box. :noidea:

                • Like Like x 1
