Polytunnel watering system

Discussion in 'Poly-Tunnel Gardening' started by Plosh, Jun 9, 2018.

  1. Plosh

    Plosh Apprentice Gardener

    Joined:
    Jun 7, 2018
    Messages:
    14
    Gender:
    Female
    Occupation:
    Livestock farmer
    Location:
    Mid Wales
    Ratings:
    +18
    Hi, new member here. This is my first question.
    I have a 30' x 14' tunnel and it is in its third season so I am still learning. The tunnel is behind a sheep shed so the water supply is from the 1200 sq ft shed roof which is collected in an IBC and I have a pipe and tap from that. There is no possibility of an electricity supply to the tunnel. In my first season I installed a leaky hose watering system from 2 barrels inside the end of the tunnel which are up on 18" blocks. I used battery operated timers - the only timers that I could find to work on low pressure. It worked swimmingly for a few days then I wasn't sure about the timing so I kept upping the watering times. Eventually I forgot the timers and just left it run for the day but the water in the barrels was going down so slowly it can hardly have been working and I could tell that the hose hadn't been wet so I gave up using it.
    At the end of the season I opened the stops on the ends of the hose and the barrel taps to empty the remaining water from the barrels and hey presto, immediately the leaky hose started leaking like a good'n all the way along its length! I took the hose up for the winter and just haven't had the incentive to put it all back down and try again.

    My only thought so far was that once the hose got wet the holes got clogged by particles in the water and prevented the hose from working but that after I had stopped using it and it had dried out thoroughly the holes returned. I have no idea. Does anyone have any experience of leaky hose or any other watering system?

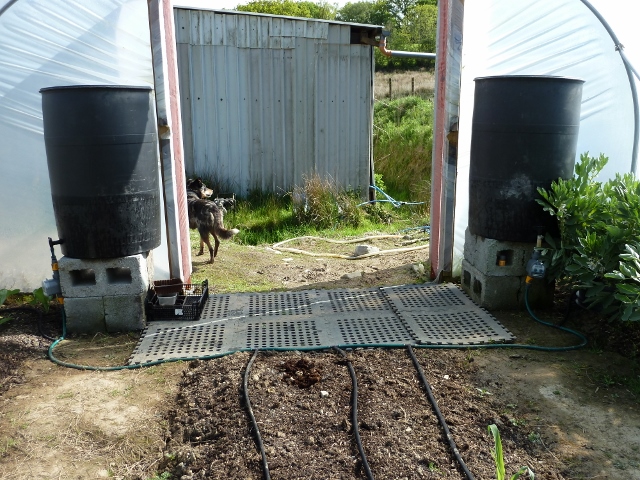

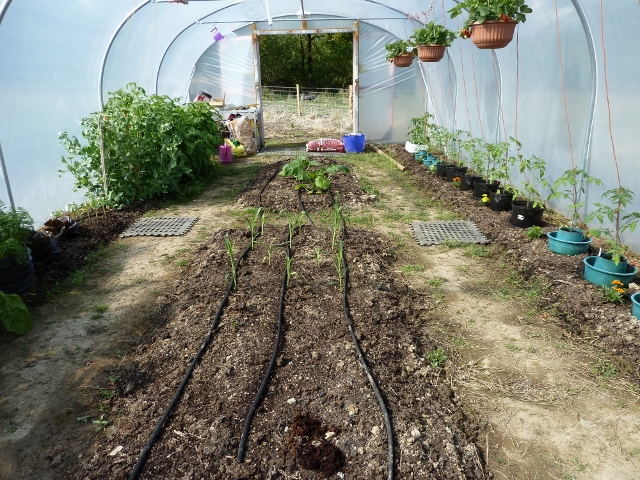

    A couple of pics of what I did.
    P1010857 (640x480).jpg
    P1010856 (640x480).jpg

    • Like Like x 2
    • Steve R

      Steve R Soil Furtler

      Joined:
      Feb 15, 2008
      Messages:
      3,699
      Gender:
      Male
      Occupation:
      Carer
      Location:
      Cumbria
      Ratings:
      +3,268
      I did speak with a giant pumpkin grower via email a few years ago about this very subject, he was starting to have the same or similar issue with leaky hoses blocking up after a few seasons use. Even dragging the hoses over soil carefully to lay them out results in them getting dirty, leading to clogging, walking up and down a dusty path like in your pic above will again add more dirt to the hose.

      In the end we reasoned that using some old curtains or similar, cut into strips then sown into a giant covering sock would be the way to go in the future, keeping leaky hose clean. They can be removed and washed end of season keeping everything nice. I lost contact with him so I do not know if it worked or if indeed he ever tried it.

      Steve...:)

    • Plosh

      Plosh Apprentice Gardener

      Joined:
      Jun 7, 2018
      Messages:
      14
      Gender:
      Female
      Occupation:
      Livestock farmer
      Location:
      Mid Wales
      Ratings:
      +18
      Thanks Steve. That's not very satisfactory (I mean the hose, not your reply) as its not really up to the job it's supposed to do. I've seen it recommended that the hose is buried - I'm not sure I can see that being any different.
      I don't know if I can face constructing 150' of sock and threading pipe through it as an experiment. Having 2 seasons under my belt now I've actually not found watering with a can too difficult as the clay base to the beds holds moisture very effectively. Even in the last month of very hot weather (almost unheard of here), with the temperature in excess of 40° in the tunnel, I haven't had to water every day and nothing has suffered.

    • Marley Farley

      Marley Farley Affable Admin! Staff Member

      Joined:
      May 11, 2005
      Messages:
      28,659
      Occupation:
      Gardener Councillor Governor Homemaker
      Location:
      Under the Edge Zone 8b
      Ratings:
      +10,355
      Well my tunnel is nearly as big as yours at 27’ x 15’ @Plosh.. I have 5 x 1050 water butts I hand water all the water butt water now,because it blocks up holes with silt otherwise. I tried fitting a filter on the butt but it kept clogging and so unreliable that was useless. I do however have soaker hoses that I can use in very hot weather.. They are proper soaker hoses which I run from mains water and I don’t have a problem of them blocking.. Do you have access to a mains supply.?
      The temps can get incredible in there and for a couple of years I only hand watered very early morning and late evening some days.. Now though with the combination of hand and hose I can water as and when..

    • Plosh

      Plosh Apprentice Gardener

      Joined:
      Jun 7, 2018
      Messages:
      14
      Gender:
      Female
      Occupation:
      Livestock farmer
      Location:
      Mid Wales
      Ratings:
      +18
      The leaky hose I've got is 'proper soaker hose' afaik. I don't have access to mains water for the tunnel - it's nearly 1/4 mile away. I have thought about trying to filter the water as it goes into the barrels using a milk sock, I might give it a go one day but I would presumably need to clean the hose first. On the other hand I might just forget it and stick with the watering can.

      • Friendly Friendly x 2
      • Marley Farley

        Marley Farley Affable Admin! Staff Member

        Joined:
        May 11, 2005
        Messages:
        28,659
        Occupation:
        Gardener Councillor Governor Homemaker
        Location:
        Under the Edge Zone 8b
        Ratings:
        +10,355
        I hand water most of the time and let the soakers help a bit as well now.. I see you grow your toms ring culture.. I do too in the tunnel otherwise they dry out, but the rings are perfect I find.. Happy growing :SUNsmile:

      • JWK

        JWK Gardener

        Joined:
        Jun 3, 2008
        Messages:
        19,480
        Gender:
        Male
        Location:
        Surrey
        Ratings:
        +19,820
        I am not entirely sure leaky hoses work under low pressure - you say yours did to begin with but now suspect it's getting clogged up.

        To stop it clogging you need a rainwater filter on the shed gutter. Then you will need to clean out your leaky hose. Bring it home and blast it through with mains pressure. I have considered this sort of thing in the past for my system:

        Gutter Mate Diverter & Filter in Black
        They are cheap but I haven't got around to trying such a thing yet.

        I have a couple of IBCs which I use to fill up watering cans. The IBCs fill off a shed roof and as you know they get crud building up in the tank over time. I have to flush them out every couple of years as it gets smelly. I had planned to use them to water my greenhouses but am sure the dirty water would clog things up as unfortunately you have found.

        Instead I connect my leaky hoses onto main pressure, I think the mains pressure keeps the leaky hoses clean. I am sure my leaky hose would not work under low pressure as it only dribbles out with mains.

        I do have a low pressure system with drippers - fed from a water butt but only filled with clean water from the mains to avoid clogging the nozzles.

        • Like Like x 1
        • Plosh

          Plosh Apprentice Gardener

          Joined:
          Jun 7, 2018
          Messages:
          14
          Gender:
          Female
          Occupation:
          Livestock farmer
          Location:
          Mid Wales
          Ratings:
          +18
          I actually first started my toms and other stuff in rings, bottomless pots and miscellaneous bits of redundant drainage equipment because when I did the beds I didn't have enough decent topsoil to put on top of the clay. As I've emptied out the pots each time it has added to the topsoil layer of the beds and I am starting to get some presentable soil. I also have the advantage of a massive muck heap complete with a healthy worm population right next to the tunnel. I also find the rings help to target the watering rather than it running off onto the paths and other places I don't want it.

          A problem I do have JWK is that we don't have mains water for the house either (intending to change that) and our water pressure is very low. We have to have a pump to get half decent pressure in the house. The leaky hose worked just fine for the very short time it was actually working - that is in terms of the water reaching right down to the end of the tunnel on all 5 lines. When I opened the taps on the ends of the lines there was a reasonable flow of water coming out. I'm sure it was just the clogging that was the issue.

          Last edited: Jun 9, 2018
        • JWK

          JWK Gardener

          Joined:
          Jun 3, 2008
          Messages:
          19,480
          Gender:
          Male
          Location:
          Surrey
          Ratings:
          +19,820
          Maybe take it to a friend or relatives house and use their garden tap or hire a petrol powered pump?

        • JWK

          JWK Gardener

          Joined:
          Jun 3, 2008
          Messages:
          19,480
          Gender:
          Male
          Location:
          Surrey
          Ratings:
          +19,820
          Or it might be just as easy to buy a new hose after fitting the rainwater gutter filter, I think they are fairly cheap?
