Automatic watering

Discussion in 'Greenhouse Growing' started by Mellor3456, May 24, 2018.

  1. Mellor3456

    Mellor3456 Apprentice Gardener

    Joined:
    May 22, 2018
    Messages:
    3
    Gender:
    Male
    Ratings:
    +3
    Retirement means the opportunity to take a holiday at the drop if a hat is hard to resist! The problem is one's garden management and, in particular, watering ones precious tomato crop in the greenhouse.
    I have researched the Internet and seen lots of irrigation systems that are cheap, but having used similar products for hanging baskets, found them tempermental at best. I have also seen a cistern solution that might allow feeding too. However, neither of these really appeals - has anyone got a recommended solution that is reliable, robust and automatic?

    • Like Like x 1
    • martin-f

      martin-f Plant Hardiness Zone 8b

      Joined:
      Mar 15, 2015
      Messages:
      3,270
      Gender:
      Male
      Location:
      Sheffield
      Ratings:
      +9,987
      Hi Mellor welcome to the forum, i bought these Grow Bag Waterer - 2810- Hozelock last year when we went away, we only went for a week and the plants was fine still some water left in the reservoir,

      Usually more you pay for a system the better it should be,

      BUT it would be very easy to make your own system to how you want it, plastic pipe and glue fit connections are quite cheap now days connect it up to a timer https://www.screwfix.com/p/programmable-digital-water-timer/18480 and it will last for years.

      • Like Like x 1
      • Informative Informative x 1
      • Gail_68

        Gail_68 Beauty blooms in the garden as well as the heart.

        Joined:
        Nov 17, 2017
        Messages:
        4,283
        Gender:
        Female
        Occupation:
        Housewife
        Location:
        West Midlands_UK
        Ratings:
        +6,837
        Hi @Mellor3456 :sign0016: to GC....Martin is quite good regarding do it yourself and you won't go wrong but other members will also reply :)

      • Mike Allen

        Mike Allen Gardener

        Joined:
        Jan 4, 2014
        Messages:
        224
        Gender:
        Male
        Ratings:
        +461
        We used to spend time away in the caravan, sometimes several weeks. I set up a system. I ran a hose fro the outside tap to the greenhouse. As the GH is wooden framed, it's easy to attach bits and bobs. I fitted a non-return tap with a 'Y' outlet, giving me two outlets. Outlet one has the garden hose fitted. Outlet two i attached a battery operated timer. From the timer unit I used ordinary 1/2 inch hose secured to the roof glazing bars by means of cable/pipe saddle clamps. The affixed hose went along one side of the GH, across the center path and back down the other side. To seal the end I simply bent a couple of inches of pipe and secured with a jubilee clip. Prior to fixing the pipe. I had purchased a couple of packs of jet nozzles, pieced the pipe at about 18 inch intervals and screwed the nozzles in. It takes a day or two to come to grips with setting the timer. Trust me. The system works great.

        • Like Like x 2
        • martin-f

          martin-f Plant Hardiness Zone 8b

          Joined:
          Mar 15, 2015
          Messages:
          3,270
          Gender:
          Male
          Location:
          Sheffield
          Ratings:
          +9,987
          • Like Like x 3
          • Barb in Pa

            Barb in Pa Gardener

            Joined:
            Apr 1, 2018
            Messages:
            74
            Gender:
            Female
            Occupation:
            retired
            Location:
            Pa
            Ratings:
            +167
            I have a very large greenhouse and have a watering system very much like martin-f....I also have it set up with 3 zones watering every other day to once a week. Water times are well with the price and replacing the batteries every year is a must....

            • Like Like x 2
            • martin-f

              martin-f Plant Hardiness Zone 8b

              Joined:
              Mar 15, 2015
              Messages:
              3,270
              Gender:
              Male
              Location:
              Sheffield
              Ratings:
              +9,987
              Hi Barb, i haven't got this setup but that's what i will do in the near future, ive done plumbing work for many years so it will be a walk in the park setting it up,

              I only have a small 8x6 greenhouse so not much work to do, some pictures of your setup would be useful Barb if and when you can find the time :)

              • Like Like x 1
              • Barb in Pa

                Barb in Pa Gardener

                Joined:
                Apr 1, 2018
                Messages:
                74
                Gender:
                Female
                Occupation:
                retired
                Location:
                Pa
                Ratings:
                +167
                LOL Mine has been set up for years and years..Things are overgrown in there... but I will go there and try to take pics of the important stuff...over the years things get changed as the seasons and environment changes so we just tie off a thingie and add another some place else. One day we should start from scratch again BUT bet that will never happen...LOL

                • Like Like x 2
                • martin-f

                  martin-f Plant Hardiness Zone 8b

                  Joined:
                  Mar 15, 2015
                  Messages:
                  3,270
                  Gender:
                  Male
                  Location:
                  Sheffield
                  Ratings:
                  +9,987
                  Thanks it might help peeps who wish to set there own system up :).

                  • Like Like x 1
                  • Barb in Pa

                    Barb in Pa Gardener

                    Joined:
                    Apr 1, 2018
                    Messages:
                    74
                    Gender:
                    Female
                    Occupation:
                    retired
                    Location:
                    Pa
                    Ratings:
                    +167

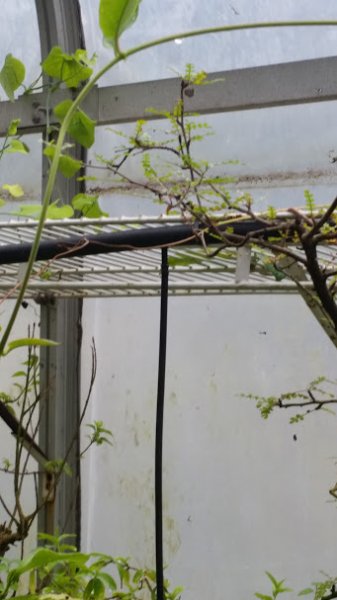

                    This is flexible black pipe designed for Raindrip low pressure system but it will work for any lo pressure system.

                    These are quarter inch black tubing designed for low pressure. We find the fittings from on line garden or greenhouse places.

                    These are battery operated water times that go into the gang valve "below". We used plastic gangs years ago and I decided that metal would be much better.


                    Can you see the black pipe with the small quarter inch black tubing that is plugged? That is what we do when we don't need it anymore..

                    We like spinners the best.

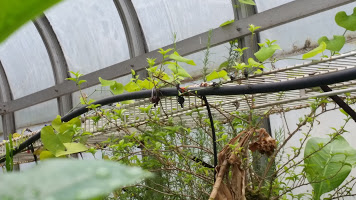

                    Large pipe and small tubing for drippers


                    See more of the watering piping and tubing. Plants grow into it sometimes...what a mess....LOL

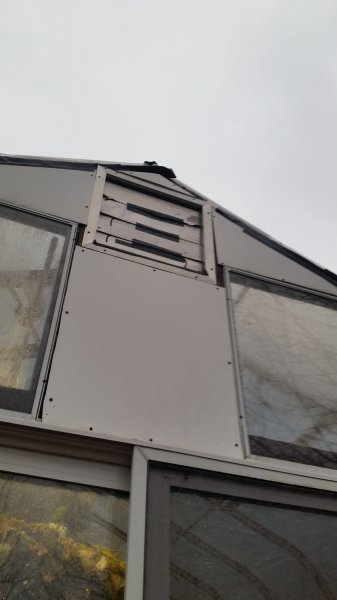

                    Ventilation is very important even in winter so think about that..

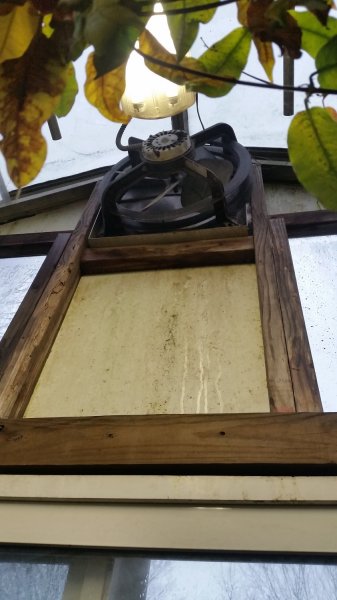

                    It automatically turns on when the temp gets too high.

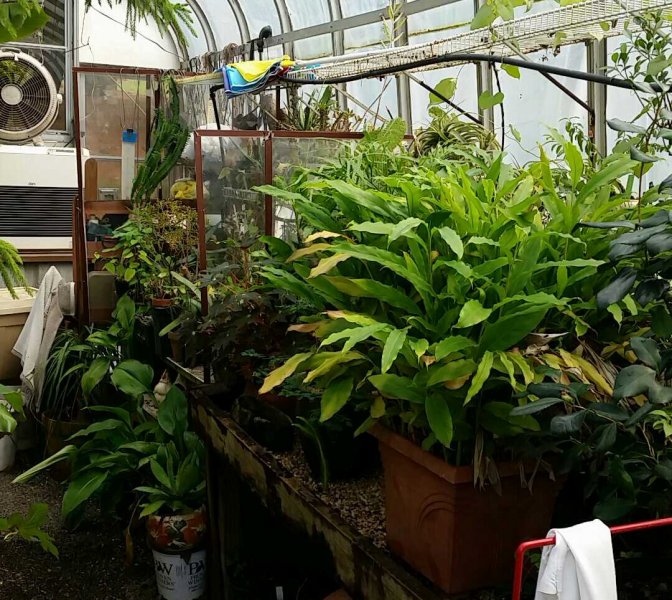

                    Here is a picture of inside my greenhouse a few years ago...It is too much of a mess for you all to see it this week..LOL
                    You can see how the water pipe can sag over the years. We use electric wire ties to hold them in place and they break over the years in the sun. This year we have to fix the poor thing..

                    • Like Like x 4
                    • Barb in Pa

                      Barb in Pa Gardener

                      Joined:
                      Apr 1, 2018
                      Messages:
                      74
                      Gender:
                      Female
                      Occupation:
                      retired
                      Location:
                      Pa
                      Ratings:
                      +167

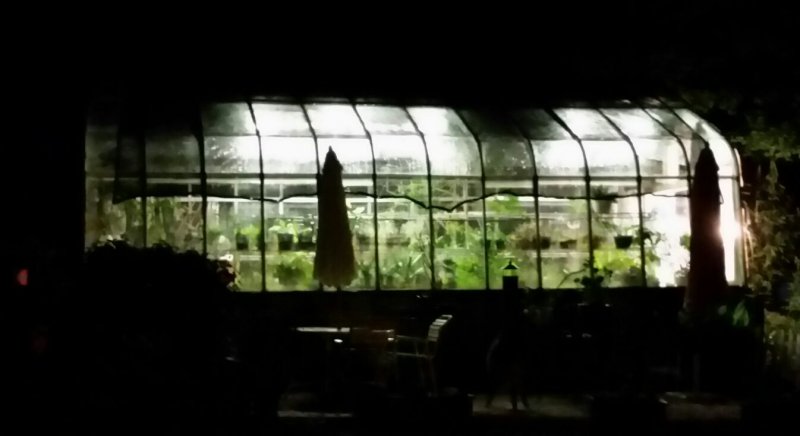

                      Here are a few of my favorite pictures of my greenhouse...First is my avatar

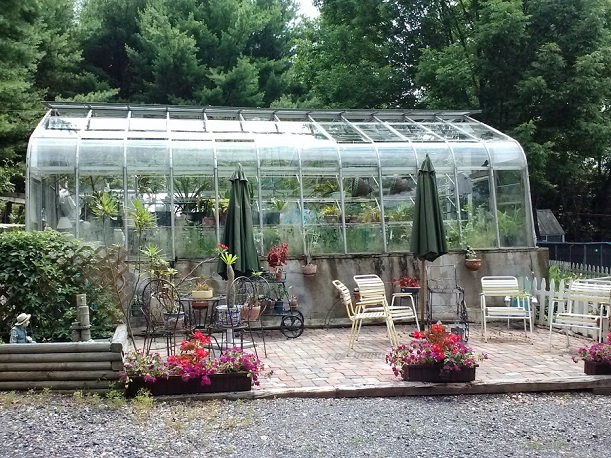

                      greenhouse1 (2)q.jpg

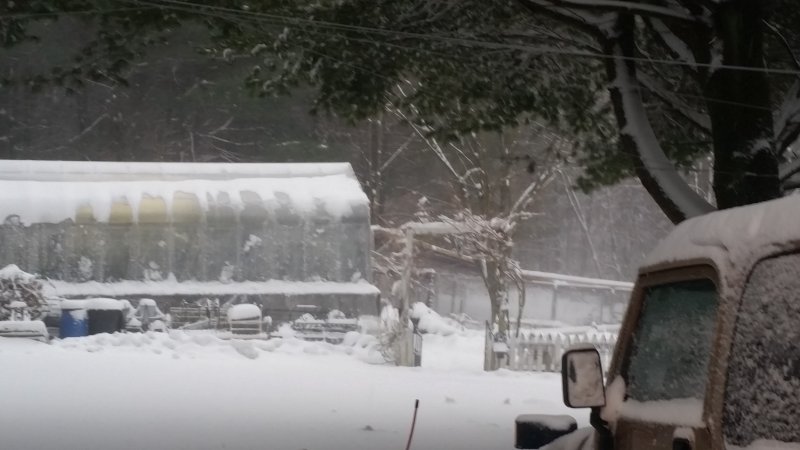

                      greenhouse snow.jpg

                      • Like Like x 5
                      • martin-f

                        martin-f Plant Hardiness Zone 8b

                        Joined:
                        Mar 15, 2015
                        Messages:
                        3,270
                        Gender:
                        Male
                        Location:
                        Sheffield
                        Ratings:
                        +9,987
                        Thanks Barb a nice system and greenhouse you have there :dbgrtmb:

                        • Agree Agree x 1
                        • Barb in Pa

                          Barb in Pa Gardener

                          Joined:
                          Apr 1, 2018
                          Messages:
                          74
                          Gender:
                          Female
                          Occupation:
                          retired
                          Location:
                          Pa
                          Ratings:
                          +167
                          Oh thank you. We used to have small brunches with friends out there on Sundays. But then we got overgrown with things and it's not fun anymore.. I clean the greenhouse out after we get the outside stuff in the gardens ready. It all comes together by the end of June...

                          • Like Like x 1
                          • Friendly Friendly x 1
                          • Barb in Pa

                            Barb in Pa Gardener

                            Joined:
                            Apr 1, 2018
                            Messages:
                            74
                            Gender:
                            Female
                            Occupation:
                            retired
                            Location:
                            Pa
                            Ratings:
                            +167
                            I see all you liking my posts here..They are so hard to take pics of, for the system is old and up in the air and hard to take pics of...guess it works, after all...

                            • Like Like x 2
                            • Gail_68

                              Gail_68 Beauty blooms in the garden as well as the heart.

                              Joined:
                              Nov 17, 2017
                              Messages:
                              4,283
                              Gender:
                              Female
                              Occupation:
                              Housewife
                              Location:
                              West Midlands_UK
                              Ratings:
                              +6,837
                              I can see them clearly Barb [​IMG]
