Ventilation methods

Discussion in 'Greenhouse Growing' started by ricky101, Jul 1, 2017.

  1. ricky101

    ricky101 Total Gardener

    Joined:
    Jun 15, 2016
    Messages:
    3,273
    Gender:
    Male
    Location:
    Sheffield
    Ratings:
    +4,184
    Hi,

    In a small greenhouse ventilation is typically one or two top openers with a bottom louver etc.

    Wondered if using a temperature controlled extractor fan would offer any benefits or possibly have some downsides ?

  2. JWK

    JWK Gardener Staff Member

    Joined:
    Jun 3, 2008
    Messages:
    30,677
    Gender:
    Male
    Location:
    Surrey
    Ratings:
    +45,612
    It would be a good thing ricky.

    • Like Like x 2
    • CanadianLori

      CanadianLori Total Gardener

      Joined:
      Sep 20, 2015
      Messages:
      9,687
      Occupation:
      Battle Axe
      Location:
      Oakville, Ontario, Canada Zone 5A
      Ratings:
      +30,476
      How small is small?

      Perhaps a fan stirring up the works would ensure the plants get good circulation and maybe bit of shade cloth?

      • Like Like x 1
      • Scrungee

        Scrungee Well known for it

        Joined:
        Dec 5, 2010
        Messages:
        16,524
        Location:
        Central England on heavy clay soil
        Ratings:
        +28,996
        Here's a few ...

        Downsides:

        Requires expensive electrical supply and temperature contoller.

        If not set up correctley, used in conjunction with thermostatic heating the extract fan can be blasting out warm air whilst the heater below turns itself on/up to make good heat loss.

        Benefits:

        Extra ventilation for when autovent controlled roof windows aren't adequate.

        Allows door to be left closed keeping birds and cats out (if no mesh screen), also wind and rain.

        Improves air circulation.



        For a small greenhouse you might get away with something like an (Artic) computer fan, a mains adapter (ex-mobile phone charger will do) and a temperature controller with a cooling function. Using a timer can help prevent it coming on when the heating's on. A fan speed contoller is usefull to adjust the fan speed, I use a Zalman Fanmate to slow down the fan in my big growbox.

        • Like Like x 1
        • Informative Informative x 1
        • ricky101

          ricky101 Total Gardener

          Joined:
          Jun 15, 2016
          Messages:
          3,273
          Gender:
          Male
          Location:
          Sheffield
          Ratings:
          +4,184
          Thanks all,

          Have got an Arduino based temp controller to easy enough to add a pwm variable fan control; will give it a try as keeping the west facing door shut will also help keep the flying bugs out.

          • Informative Informative x 1
          • Scrungee

            Scrungee Well known for it

            Joined:
            Dec 5, 2010
            Messages:
            16,524
            Location:
            Central England on heavy clay soil
            Ratings:
            +28,996
            That reminds me, place some mesh over the inside of the fan to prevent any butterflies or bees that get inside from being shredded.

            • Like Like x 2
            • Useful Useful x 2
            • ricky101

              ricky101 Total Gardener

              Joined:
              Jun 15, 2016
              Messages:
              3,273
              Gender:
              Male
              Location:
              Sheffield
              Ratings:
              +4,184
              Hi,

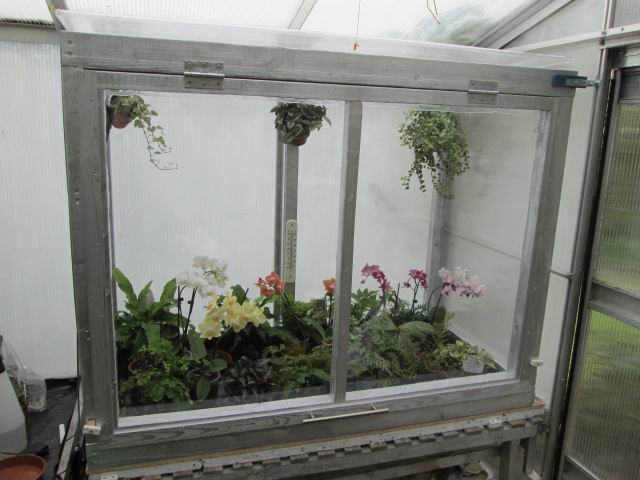

              Did not want to complicate the original question, but the 'greenhouse' in question is actually a 4x2x3ft mini greenhouse / frame within my 8x6 lean to.

              Its specifically to year round grow small orchids, paphs and phals, along with other shade loving filler plants like ferns etc.

              As you can see just starting to place the plants, and the ventilation is just a string from the main greenhouse auto top vent pulling up the lid and, when connected, to a flap on the bottom of the side.
              While it does work think using some temperature controlled fans might give better results.


              • Like Like x 3
              • Agree Agree x 1
              • martin-f

                martin-f Plant Hardiness Zone 8b

                Joined:
                Mar 15, 2015
                Messages:
                3,372
                Gender:
                Male
                Location:
                Sheffield
                Ratings:
                +10,302
                • Like Like x 1
                • CanadianLori

                  CanadianLori Total Gardener

                  Joined:
                  Sep 20, 2015
                  Messages:
                  9,687
                  Occupation:
                  Battle Axe
                  Location:
                  Oakville, Ontario, Canada Zone 5A
                  Ratings:
                  +30,476
                  I have a dc fan that would normally be in a server - it moves a lot of air. Smaller pc fans can be run off of a little solar panel. Done it, still have then running and darn cheap to set up too :)

                  • Like Like x 3
                  • Informative Informative x 1
                  • Scrungee

                    Scrungee Well known for it

                    Joined:
                    Dec 5, 2010
                    Messages:
                    16,524
                    Location:
                    Central England on heavy clay soil
                    Ratings:
                    +28,996
                    Something that small looks perfect for a computer fan setup, it's probably smaller than my growbox with lights and propagators all generating heat, and using a speed controller gave me the peace of mind that the fan wouldn't blast every bit of heat outside in seconds

                    • Like Like x 2
                    • ricky101

                      ricky101 Total Gardener

                      Joined:
                      Jun 15, 2016
                      Messages:
                      3,273
                      Gender:
                      Male
                      Location:
                      Sheffield
                      Ratings:
                      +4,184
                      Have got some 120mm fans on order to supplement the one I already have in there purely as a circulation fan.

                      Also took a pun and ordered a little £5 12v dc humidifier thats on ebay as no idea how good or bad they really are; have used a full size domestic one before but way too big for this little enclosure.

                      • Like Like x 1
                      • CanadianLori

                        CanadianLori Total Gardener

                        Joined:
                        Sep 20, 2015
                        Messages:
                        9,687
                        Occupation:
                        Battle Axe
                        Location:
                        Oakville, Ontario, Canada Zone 5A
                        Ratings:
                        +30,476
                        And if you use a small solar panel, the fan operates when the sun shines. Just when you need it!

                        • Agree Agree x 1
                        • Scrungee

                          Scrungee Well known for it

                          Joined:
                          Dec 5, 2010
                          Messages:
                          16,524
                          Location:
                          Central England on heavy clay soil
                          Ratings:
                          +28,996
                          Looking back at what I paid, I got that speed controller for £2.99 delivered (part of larger order) Zalman FAN MATE 2 (3-pin fan Speed Controller) £2.99 @ amazon (Add-on item) Alwsys worth knowing what you're going to need and snapping up stuff when cheap.

                          And this was the fan I bought Arctic Cooling F8 @ Amazon £2.59 with orders over £10

                          • Informative Informative x 2
                          • Like Like x 1
                            Last edited: Jul 5, 2017
                          • ricky101

                            ricky101 Total Gardener

                            Joined:
                            Jun 15, 2016
                            Messages:
                            3,273
                            Gender:
                            Male
                            Location:
                            Sheffield
                            Ratings:
                            +4,184
                            Just an update that might be useful to others..

                            Tried various PC fans but just not enough flow to cover my small housing and their output/flow was very narrow; seems many of the 120mm fans are low speed these days, something like a Arctic F12 is quoted as twice the rpm / airflow, but twice the price.

                            One of these arrived today and it really does the job with its big blades really giving a wide and big flow but without being overly forceful, just what the plants need.

                            Its from £6 , depending who you buy from /postage, so its seem ideal, just a case of how it stands up to running 24/7 in a humid area, but at that price can afford to have a spare ready.:smile:

                            Seems they do a similar plastic version which might withstand the moisture better, but the airflow looks a little bit restricted to the one I have.

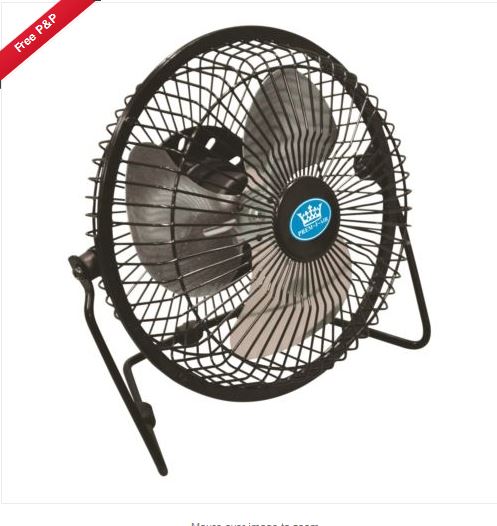

                            Prem-i-air 6" USB Desk Fan


                            • Like Like x 1
                            • Scrungee

                              Scrungee Well known for it

                              Joined:
                              Dec 5, 2010
                              Messages:
                              16,524
                              Location:
                              Central England on heavy clay soil
                              Ratings:
                              +28,996
                              • Like Like x 1
                              • Creative Creative x 1
